Introduction and access to GDP@Pharmacy

Introduction and access to GDP@Pharmacy

1. Introduction
This manual describes the use of AntTail GDP@Pharmacy web portal.

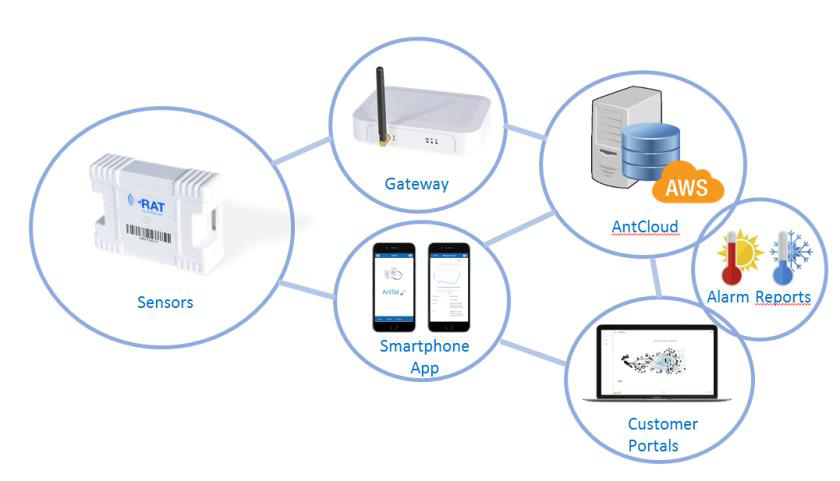

AntTail RAT (Rugged AntTail Tag) sensors can be used to monitor fridges, freezer and rooms. The sensors are read out automatically and wireless by the AntTail gateway and the data is stored into the AntCloud according to GDP guidelines.
Via customer portals, the sensor data can be viewed and alarm settings can be controlled and evaluated. The AntTail app on a smartphone can also be used to view the sensor set status and to read out the RAT sensors.
This can be useful when a RAT sensor is used during a delivery run to patients.
2. Access
The Monitor Service can be accessed (https) via a web browser by users with access right. The URL is https://service.anttail.com.
The web application gives access to the data of the user's sensors and information about the sensors and monitor sets of a user. After login on the web application the home page is shown. The logout button can be used to close the application. Different pages can be accessed via the menu on the left.

3. Structure
The AntTail monitor service consists of 3 main choices:
1. Data. The sensor temperature data and the event data can be shown. Under sensors, the stored sensor data can be shown in graphs and can be exported. Events are logged timestamps when special situations like alarms, gateway on/off occur.
2. Configuration. The monitor set can be configured. A monitor set is a group of sensors that have the same alarm profile and/or are included in the same weekly report. Users can change the monitor set parameters, which include the contact and e-mail where reports and alarms are sent to.
3. Administration. Account settings can be changed.
